Perceptual & Memory Deviations

     toward ‘Regular’ Orientations

Common in Visual, & Kinesthetic Spatial Cognition

1. a Primacy of Dimensional orientations
  over Diagonal orientations

2. a Primacy of regular ‘pure’ 45º Diagonals
  over irregular tilting orientations

well known “Oblique Effect”

Diagonals vs. Dimensionals

  1. higher detection thresholds,
  2. require longer training periods to learn a selective response,
  3. receive slower response,
  4. less accurate duplication,

faster reaction times

slower reaction times

Memory bias toward Dimensionality

eg. DRAW INTERSECTION OF PATHS
(pairs of roads in a well known city) (recalled by drawing or pointing)

ANGLES remembered as more dimensional
(closer to right angles (90º)

actual path

recalled closer to right angles

actual path

Gestalt principal of ‘Pragnaz’
identified in 1920s by Gestalt Psychologists

Perception tends to be:

simple, concise, good, regular, logical, coherent, whole

Dimensions = most ‘regular’

an 85º angle, perceived as ‘impure’ right angle (90º)

‘impure’

‘PURE’

‘impure’

Regularising effect

bias toward most concise, simple, regular
common in Visual & Kinesthetic spatial cognition

> Place a dot where two lines would intersect

dot is placed as if lines are more dimensional

place a dot where two lines would intersect

> Draw a familiar map

mental maps tend towards dimensional alignment


ACTUAL orientation	RECALLED orientation

> Point in Directions with the Arm

Dimensions are recalled best

Tilted directions recalled closer to Dimensions

recalled best

recalled less accurate

positions learned

recall after 24 hrs

in a horizontal plane

in a medial plane

Bias toward ‘pure’ Diagonals
... If Not close to a Dimension, ...

Memory bias towards pure 45º Diagonal

> Recall location of dot in a circle

ERRORS deviate towards nearest Dimension or pure Diagonal

example image

recall location of dot?

example recall deviations

“Subjects spontaneously impose horizontal and vertical boundaries that divide the circle into quadrants. They misplace dots toward a central (prototypic) location in each quadrant” (Huttenlocher, Hedges, & Duncan, 1991).

Perception of motion in visual arts

Perceptual deviations influence visual arts

Simplest example; a CIRCLE in a SQUARE

black circle appears to strive or move
toward the closest dimensional or diagonal axis

CIRCLE may appear to strive or move in a SQUARE

eg. Drawings of Windmills

1. Dimensional alignment - perception of stability

2. Regular Diagonals - some perception of motion

3. Irregular Obliques - greatest induced motion
(appear to strive toward a Dimension or Regular Diagonal)

most perceived stability

some perceived motion

appear to strive

Maps of perceptual striving

Patterns of perceived motion can be mapped

Objects move toward ‘pools of attraction’
at regular, symmetrical divisions of space

“Structural skeleton”
with
“basins of attraction”

Cognitive structure
Perceptual / Memory deviations indicate:

memory schemata

Large number of experiences
perceived & remembered
Small number of regular prototypes (Cognitive Economy)

A possible spatial schema:

regular prototype
&
irregular variations

Perceptual Heuristics

Prototypes serve as reference points or heuristics

(‘rule of thumb’)

perceiving diverse events relative to
a small number of prototypes,
allows quicker perception & reaction time

> Ecologically advantageous
even at the risk of small errors by mis-judging events as more prototypical than Reality

Choreutics prototypes & deflections

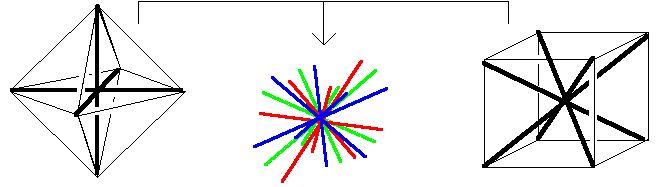

> Choreographie (1926) set out in 3D space:

Regular Prototypes Irregular Deflections
3 Dimensions x 8 Diagonals = 24 Inclinations

3 dimensions

24 inclinations

8 diagonals

> Choreutics (1966); detailed intermediary stages:

PROTOTYPICAL
1D Dimensions				1 directional tendency: “basic elements”
3D Diagonals, “pure diagonals”				3 EQUAL directional tendencies
DEFLECTING
2D Diameters, “plane diagonals”
	“Primary deflected diameters”			2 EQUAL directional tendencies “‘deflected’ from the dimensions or the diagonals” oriented at 45° within a cardinal plane.
	“Modified diameters”			2 UN-EQUAL directional tendencies cardinal planes elongate in one dimension, diameters slightly tilt
3D Inclinations, do not lie in a cardinal plane
		“Secondary deflected”	2 EQUAL + 1 UN-EQUAL directional tendencies (1 large + 2 medium) (cube-octahedron)
		“Tertiary deflections” “modified diagonals”	3 UN-EQUAL directional tendencies (1 large, 1 middle, 1 small (icosahedron)

Choreutic Harmony Theory

> Furthest stage of deflection
Inclinations with 3 un-equal directional tendencies,
most “natural” or “harmonious”

Aspects of this Theory, described in many places.

> Dimensions & Diagonals set as spatial contrasts:

The two contrasting fundamentals on which all choreutic harmony is based are the dimensional tension and the diagonal tension. (Laban, 1966, p. 44)

> Affined with dynamics: Stability & Mobility(or lability)

dimensions, seem to have in themselves certain equilibrating qualities . . . a feeling of stability . . .
space diagonals give . . . a feeling of growing disequilibrium, or . . . mobility. (Laban, 1966, p. 90)

> Organic Harmony as ‘mixtures’ of contrasts:

PHILOSOPHICALLY:

Since every movement is a composite of stabilising and mobilising tendencies, and since neither pure stability nor pure mobility exist, it will be the deflected or mixed inclinations which are the more apt to reflect trace-forms of living matter. (Laban, 1966, p. 90)

In these deflected directions stability and lability complement each other in such a way that continuation of movement is possible through the diagonal element whilst the dimensional element retains its stabilising influence. (Ullmann, 1966, p. 145)

ANATOMICALLY:

. . . the deflected directions are those directions which, in contrast to the stable dimensions and to the labile diagonals, are used by the body most naturally and therefore the most frequently. (Ullmann, 1966, p. 145)

Because the body limits the fulfilment of perfect three-dimensional shapes that pure diagonals would offer, most three-dimensional shapes are created through modified diagonals . . . These are available to the body. (Bartenieff & Lewis, 1980, p. 33)

Prototypes in Labanotation

Regular Dimensions & 45º Diagonals prioritised
represented with single sign

1D dimensions

2D planar diagonals
(45°)

3D diagonals
(45°)

Deflections in Labanotation

Irregular Inclinations, represented more obscurely

represented with multiple signs, half-way, third-way directions

Examples of inclinations
(Vertical deflections of Diagonal leftwards-forwards-downwards)

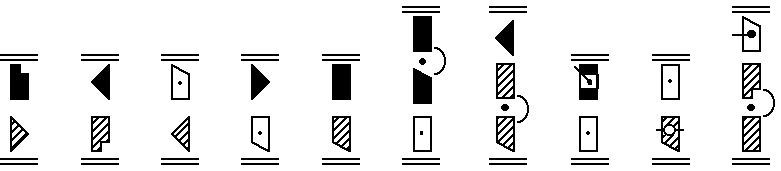

Deflections in Inclination signs
early signs in Choreographie (1926)

Deflecting between 2 contrasting prototypes: Dimension x Diagonal

Diagonals:

right-
fore-up

left-
back-down

left-
fore-up

right-
back-down

left-
back-up

right-
fore-down

right-
back-up

left-
fore-down

Dimensions

vertical

lateral

sagittal

Inclinations

READING THE SIGNS: shape = dimension (vertical, lateral, or sagittal)
orientation = the diagonal,
the ‘dot’ = up or down on that line

Inclination signs in choreutics

Returned to in Choreutics ([1939]1966) as

free space lines & free inclinations

Diagonal signs & Dimensional letter = free inclination

and
“notation capable of doing this is an old dream in this field of research”.

Spatial cognition & choreutics

choreutic concept of deflections
is given validity
by similar structures in spatial cognition studies

both show contrast between:

Prototypes
Ideal forms
Concepts
Abstract

Deflections
Actual forms
Reality
Physical

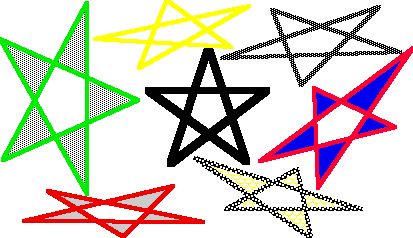

Topology in motor control

- Variation in motor performance is the rule
every movement is at least a bit different

Anatomical sources for variability
Intensity & balance of forces exerted, joint viscosity, limb inertia, interaction torques across joints, fatigue,...

a circle

variability

> Control of variability with engram & parameters

Movements bend, stretch, and change on every performance,
‘essential form’ remains

Theorised: Control:

abstract topological form
general attributes; closed / open, crossing, order, number

motor engram or image
memory representation

variable parameters
sizing, rotation, speed, body use

changes in performance
stretching, bending the form

topological forms in continuous fluctuation:

"co-ordinational net of the motor field ...
as oscillating like a cobweb in the wind" (Bernstein, 1984, p. 109)

Topology in choreutics
Motor net -- choreutic “scaffolding”
conceived in both ways:

(idealised prototype)
Fixed structure around the body
specific sizes and proportion
Platonic forms

(deflections)
“Living Architecture”
changing location, size, proportions
flexible tension nets

> Topological forms deflect across kinespheric nets

Topological form
triangle
3-ring

deflects across
polyhedral nets

Octahedron 3-ring

Icosahedron 3-ring

> Transformation of ‘scales’

Principal scale: hexagonal “defence sequence” in many deflections

Hexagonal
defence scale
deflects
to
inclinations

(icosahedral scaffolding)

“For
example:

often shows
the following
form:

which is a
deflected variation
of the natural
defense-scale”
(Laban, 1966, p. 42)

(1st half
of A-scale)

> transformation of ‘scales’

Twelve-sided
topological form

Dimensional

octahedral
peripheral
12-ring

deflecting into

Inclinations

A-scale
icosahedral
transverse
12-ring

“transformation of one-dimensional directions into three-dimensional inclinations” (Ullmann, 1955, 1971)

Cardinal
Planar cycles
- Frontal plane
- Horizontal plane
- Medial plane

deflecting
into
inclinations

just one example

Cycles can continue
to deflect.....

FRONTAL
planar
cycle

deflecting
steep &
(suspended)

HORIZONTAL
planar
cycle

deflecting
flat
(& steep)

MEDIAL
planar
cycle

deflecting
suspended
(& flat)

and....
“there is no end to this process” of deflecting since
“the number of possible inclinations is infinite” (Laban, 1966, p. 17)

Body control in coordinative structures
Space trajectories must be coordinated in the body

> Mass-spring model of motor control:
limbs as masses
muscles as springs

> Creates oscillatory system,
pendulums

alternating stretch - recoil
automatically responds to unexpected perturbations

Biceps as
spring
with mass
of forearm

> Spring-like behaviour over muscle collectives
“Functional groupings” of muscles are “integrated” into larger “collectives”
“coordinative structures”, “kinematic chains”

Entire collectives act as an integrated spring-system
- coordinated like interacting pendulums
- collectively respond to unexpected displacements
- oscillate toward intended trajectories

spring-like behaviour
of muscle collectives

“basins of attraction”
in an
“elastic force field”

Choreutic control in the body

Laban analysis Body approach
“kinetic muscular chains”, being “connected”

Rather than body-parts in isolation
Can bring spatial control to center-of-gravity of kinetic chains

Not fixed in the body; moving, can be in the air

Center-of-gravity
located in the air

eg. high-jump

center-of-gravity passes
under the bar

physical body passes
over

> Center-of-gravity organises individual parts

individual parts organise as a collective
according to the path of the center

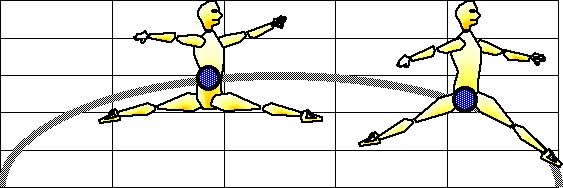

“Floating illusion”

legs and arms coordinate

to lower the
center-of-gravity

while torso &, head
remain high

> Center-of-gravity of local system

Center not only for whole-body
also ‘center’ of any coordinated system
ie. local kinematic chains, for Arm or Leg, or Body Half, etc.

center-of-gravity moves inside & outside of the physical body

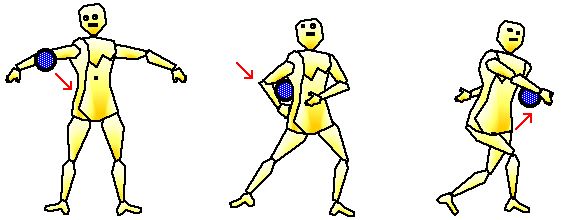

Passing the
center-of-gravity
of the arm
behind the back

eg. A-scale volute hr-bd-lf

Inclination signs lend themselves especially to this mode of control
not fixed at specific spatial points
taken as motion of center-of-gravity of kinematic chain
represent motions of shaping
in a zone linking between body and space

Summary

1. Prototypes & variations identified in perception & memory studies give validity for a similar system of choreutic deflections.

2. Deflecting Inclinations are essential for concepts of ‘harmony’ in Choreutics

3. Notation signs from Choreographie (1926) make concept of inclinations more explicit

4. Center-of-gravity of kinematic chains can bring Spatial Control into the body

5. Inclination signs are not tied to external grids and so lend themselves to this type of control in a kind of mid-way shaping zone, bridging between body and space

Reference List.

Appelle, S. (1972). Perception and discrimination as a function of stimulus orientation: The “oblique effect” in man and animals. Psychological Bulletin. 78 (4): 266–278.

Arnheim, R. (1974). Art and Visual Perception; The New Version. (expanded and revised) Berkeley: University of California Press. (Originally published 1954).

Attneave, F., & Olson, R. K. (1967). Discriminability of stimuli varying in physical and retinal orientation. Journal of Experimental Psychology. 74: 149-157.

Attneave, F., & Reid, K. W. (1968). Voluntary control of frame of reference and slope equivalence under head rotation. Journal of Experimental Psychology. 78 (1): 153–159.

Bartenieff, I., & Lewis, D. (1980). Body Movement; Coping with the Environment. New York: Gordon and Breach.

Bartlett, Sir F. C. (1932). Remembering; A Study in Experimental and Social Psychology. Cambridge: University Press. (Reprinted 1964)

Bernstein, N. (1984). The problem of the interrelation of co–ordination and localization. In Human Motor Actions; Bernstein Reassessed, edited by H. T. A. Whiting (pp. 77-119). New York: North Holland. (Originally published 1935; Also published in Bernstein, N. [1967] The Co-ordination and Regulation of Movements. Oxford: Pergamon Press. [pp. 15-59].)

Berkinblit, M. B., Feldman, A. G., & Fukson, O. I. (1986). Adaptability of innate motor patterns and motor control mechanisms. Behavioral and Brain Sciences. 9: 585–638.

Bizzi, E., and Mussa-Ivaldi, F. A. (1989). Geometrical and mechanical issues in movement planning and control. In Foundations of Cognitive Science, edited by M. I. Posner (pp. 769-792). Cambridge Massachusetts: M. I. T. Press.

Bizzi, E., Chapple, W., and Hogan, N. (1982). Mechanical properties of muscles; Implications for motor control. Trends in Neurosciences. 5: 395-398.

Byrne, R. W. (1979). Memory for Urban Geography. Quarterly Journal of Experimental Psychology. 31: 147-154.

Clark, F. J., and Burgess, P. R. (1984). Longterm memory for position. Unpublished manuscript, Dept. of Physiology and Biophysics, University of Nebraska College of Medicine: Omaha. (Reviewed in Clark and Horch 1986, p. 26).

Clark, F. J., and Horch, K. W. (1986). Kinesthesia. In Handbook of Perception and Human Performance; Volume 1, Sensory Processes and Perception, edited by K. R. Boff, L. Kaufmann, and J. P. Thomas (pp. 13.1-13.62). New York: John Wiley and Sons.

Cummings, J. F. and Caprarola, M. A. (1986). Schmidt’s schema theory: Variability of practice and transfer. Journal of Human Movement Studies. 12: 51-57.

Dell, C. (1972). Space Harmony Basic Terms. Revised by A. Crow (1969). Revised by I. Bartenieff (1977). Dance Notation Bureau: New York. (First published 1966; Fourth printing 1979)

Easton, T. A. (1972). On the Normal use of reflexes. American Scientist. 60: 591-599.

Easton, T. A. (1978). Coordinative structures - The basis for a motor program. In Psychology of Motor Behavior and Sport - 1977, edited by D. M. Landers and R. W. Christina (pp. 63-81). Champaigh, Illinois: Human Kinetics.

Evarts, E. V. and Tanji, J. (1974). Gating of motor cortex reflexes by prior instruction. Brain Research. 71: 479-494.

Fitch, H.L., Tuller, B. and Turvey, M. T. (1982). The Bernstein perspective: III. Tuning of coordinative structures with special reference to perception. In Human Motor Behavior, edited by J. A. S. Kelso (pp. 271-281). New Jersey: Lawrence Erlbaum.

Gurfinkel, V. S., Kots, Ya. M., Krinskiy, V. I., Paltsev, E. I., Feldman, A. G., Tsetlin, M. L., & Shik, M. L. (1971). Concerning tuning before movement. In Models of the Structural-Functional Organization of Certain Biological Systems, edited by I. M. Gelfand, V. S. Gurfinkel, S. V. Fomin and M. L. Tsetlin (pp. 361-372). Translated by C. R. Beard. Cambridge: M. I. T. Press.

Hackney, P. (1998). Making Connections - Total Body Integration through Bartenieff Fundamentals. Amsterdam: Gordon and Breach.

Hutchinson, A. (1970). Labanotation or Kinetography Laban: The System of Analyzing and Recording Movement (3rd revised edition 1977). New York: Theatre Arts Books. (First published 1954)

Huttenlocher, J., Hedges, L. V., and Duncan, S. (1991). Categories and particulars: Prototype effects in estimating spatial location. Psychological Review. 98 (3): 352-376.

Jordan, M. I., and Rosenbaum, D. A. (1989). Action. In Foundations of Cognitive Science, edited by M. I. Posner (pp. 727-767). Cambridge Massachusetts: M. I. T. Press.

Kelso, J. A. S. & Holt, K. G. (1980). Exploring a vibratory systems analysis of human movement production. Journal of Neurophysiology. 43 (5): 1183-1196.

Koffka, K. (1935). Principles of Gestalt Psychology. London: Routledge and Kegan Paul. (4th printing 1955)

Kugler, P. N., Kelso, J. A. S., & Turvey, M. T. (1982). On the control and co–ordination of naturally developing systems. In The Development of Movement Control and Co-ordination, edited by J. A. S. Kelso and J. E. Clark (pp. 5-78). John Wiley & Sons.

Laban, R. (1926). Choreographie (German). Jena: Eugen Diederichs. (Unpublished English translation, edited by J. S. Longstaff, 2000; London: Laban Collection archives)

Laban, R. (1928). Schrifttanz; Methodik, Orthographie, Erläuterungen [Written dance; Methodology, Orthography, Explanations] (German). Vienna: Universal Edition. (English and French editions published 1930)

Laban, R. (1966 [1939]). Choreutics (annotated and edited by L. Ullmann). London: MacDonald and Evans. (Published in USA as The language of movement: a guide book to choreutics Boston: Plays)

Laban, R. (1984). A Vision of Dynamic Space (Compiled by L. Ullmann). London: Falmer Press.

Laws, K. 1984. The physics of dance. New York: Schirmer.

Longstaff, J. S. (1987). The theory and practice of volute spatial forms. Certification Project in Laban Movement Analysis, Laban / Bartenieff Institute of Movement Studies, New York.

Longstaff, J. S. (1989). Moving in Crystals: A continued Integration of Polyhedral Geometry with Rudolf Laban’s Choreutics towards its use as a Choreographic Tool. Eugene, Oregon: Microform Publications, College of Human Development and Performance. (M.S. Thesis, University of Oregon, 1988)

Longstaff, J. S. (1996). Cognitive structures of kinesthetic space; Reevaluating Rudolf Laban’s choreutics in the context of spatial cognition and motor control. Ph.D. Thesis. London: City University, Laban Centre.

Longstaff, J. S. (1998). Subjective organisation in the recall of abstract body movements. Perceptual and Motor Skills, 86, 931-940.

Longstaff, J. S. (Ed.) (2000a). Rudolf Laban’s Choreographie. Unpublished English translation and annotated edition of Choreographie (Laban, 1926). (London: Laban Collection Archives)

Longstaff, J. S. (2000b). Re-evaluating Rudolf Laban’s Choreutics. Perceptual and Motor Skills, 91, 191-210.

Longstaff, J. S. (2000c). Organisations of Chaos in an Infinitely Deflecting Body Space. Paper presented at “A Conference on Liminality and Performance”, Brunel University Twickenham; 27-30 April.

Longstaff, J. S. (2001a). A ‘free space vector’ approach to Laban’s choreutics. Movement and Dance Magazine of the Laban Guild, 20 (2, Summer), 10-11. (Invited)

Longstaff, J. S. (2001b). Translating ‘vector symbols’ from Laban’s (1926) Choreographie. In Proceedings of the Twenty-second Biennial Conference of the International Council of Kinetography Laban, 26 July - 2 August (pp. 70-76). Ohio State University, Columbus, Ohio. USA: ICKL.

Longstaff, J. S. (2002). Choreutic Tetrahedra. Movement News (Laban / Bartenieff Institute of Movement Studies), 27 (1), 10-12.

Longstaff, J. S. (2003). A model for practical kinesthesia. Poster presentation at the 13th Annual Conference of the International Association for Dance Medicine & Science (IADMS). 24-26 October. LABAN, London.

Longstaff, J. S. (2004). Symmetries in the minuet from Laban's (1926) Choreographie. In Proceedings of the twenty-third biennial conference of the International Council of Kinetography Laban (ICKL), 23 - 28 July (pp. 174-179). Beijing Normal University, China:ICKL.

Longstaff, J. S. (2005). Rudolf Laban’s notation workbook, an historical survey of dance script methods from Choreographie (1926). In Proceedings of the twenty-fourth biennial conference of the International Council of Kinetography Laban (ICKL), 29 July - 4 August. LABAN centre, London:ICKL. (in press)

Maffei, L., & Campbell, F. W. (1970). Neurophysiological localization of the vertical and horizontal visual coordinates in man. Science. 167 (Jan.): 386-387.

Matin, E., & Drivas, A. (1979). Acuity for orientation measured with a sequential recognition task and signal detection methods. Perception & Psychophysics. 25 (3): 161-168.

Moar, I. (1978). Mental triangulation and the nature of internal representations of space. Ph.D. diss. Cambridge: St. John’s College.

Moar, I., & Bower, G. H. (1983). Inconsistency in spatial knowledge. Memory & Cognition. 11 (2): 107-113.

Mussa-Ivaldi, F. A., Hogan, N., and Bizzi, E. (1985). Neural, mechanical, and geometric factors subserving arm posture in humans. The Journal of Neuroscience. 5 (10): 2732-2743.

Pew, R. W., & Rosenbaum, D. A. (1988). Human movement control: Computation, representation, and implementation. In Stevens’ Handbook of Experimental Psychology; Vol. 2. Learning and Cognition, 2nd edition edited by R. C. Atkinson, R. J. Herrnstein, G. Lindzey, and R. D. Luce (pp. 473-509). New York: John Wiley.

Pollick, F. E., & Ishimura, G. (1996) The three-dimensional curvature of straight-ahead movements. Journal of Motor Behavior, 28 (3), 271–279.

Rosch, E. (1973). Natural Categories. Cognitive Psychology. 4: 328-350.

Rosch, E. (1975). Cognitive reference points. Cognitive Psychology. 7: 532-547.

Sadalla, E. K., Burroughs, W. J., and Staplin, L. J. (1980). Reference points in spatial cognition. Journal of Experimental Psychology: Human Learning and Memory. 6 (5): 516-528.

Schmidt, R. A. (1975). A schema theory of discrete motor skilllearning. Psychological Review. 82 (4): 225-260.

Schmidt, R. A. (1976). The schema as a solution to some persistent proplems in motor learning theory. In Motor Control; Issues and Trends, edited by G. E. Stelmach (pp. 41-65). New York: Academic Press.

Schmidt, R. A. (1982). Motor Control and Learning a Behavioral Emphasis. Champaign Illinois: Human Kinetics.

Tuller, B., Turvey, M. T., and Fitch, H. L. (1982). The Bernstein perspective: II. The concept of muscle linkage or coordinative structure. In Human Motor Behavior, edited by J. A. S. Kelso (pp. 253-270). New Jersey: Lawrence Erlbaum.

Tversky, B. (1981). Distortions in memory for maps. Cognitive Psychology. 13: 407-433.

Ullmann, L. (1955). Space Harmony - VI. Laban Art of Movement Guild Magazine, 15 (Oct.), 29–34.

Ullmann, L. (1966). Rudiments of space-movement. In R. Laban, Choreutics (annotated and edited by L. Ullmann) (pp. 138-210). London: MacDonald and Evans.

Ullmann, L. (1971). Some Preparatory Stages for the Study of Space Harmony in Art of Movement. Surrey: Laban Art of Movement Guild.

Weintraub, D. J., & Virsu, V. (1971). The misperception of angles: Estimating the vertex of converging line segments. Perception & Psychophysics. 9 (1A): 5-8.

Weintraub, D. J., & Virsu, V. (1972). Extimating the vertex of converging lines: Angle misperception? Perception & Psychophysics. 11 (4): 277-283.

Wertheimer, M. (1923). Laws of organization in perceptual forms. Reprinted in A Source Book of Gestalt Psychology, (4th edition 1969) translated and edited by W. D. Ellis (pp. 71-88). London: Routledge and Kegan Paul.

Wyke, M. (1965). Comparative analysis of proprioception in left and right arms. Quarterly Journal of Experimental Psychology. 17: 149-157.

Diagonals:		right- fore-up	left- back-down	left- fore-up	right- back-down	left- back-up	right- fore-down	right- back-up	left- fore-down
Dimensions
vertical

lateral
sagittal
	Inclinations
